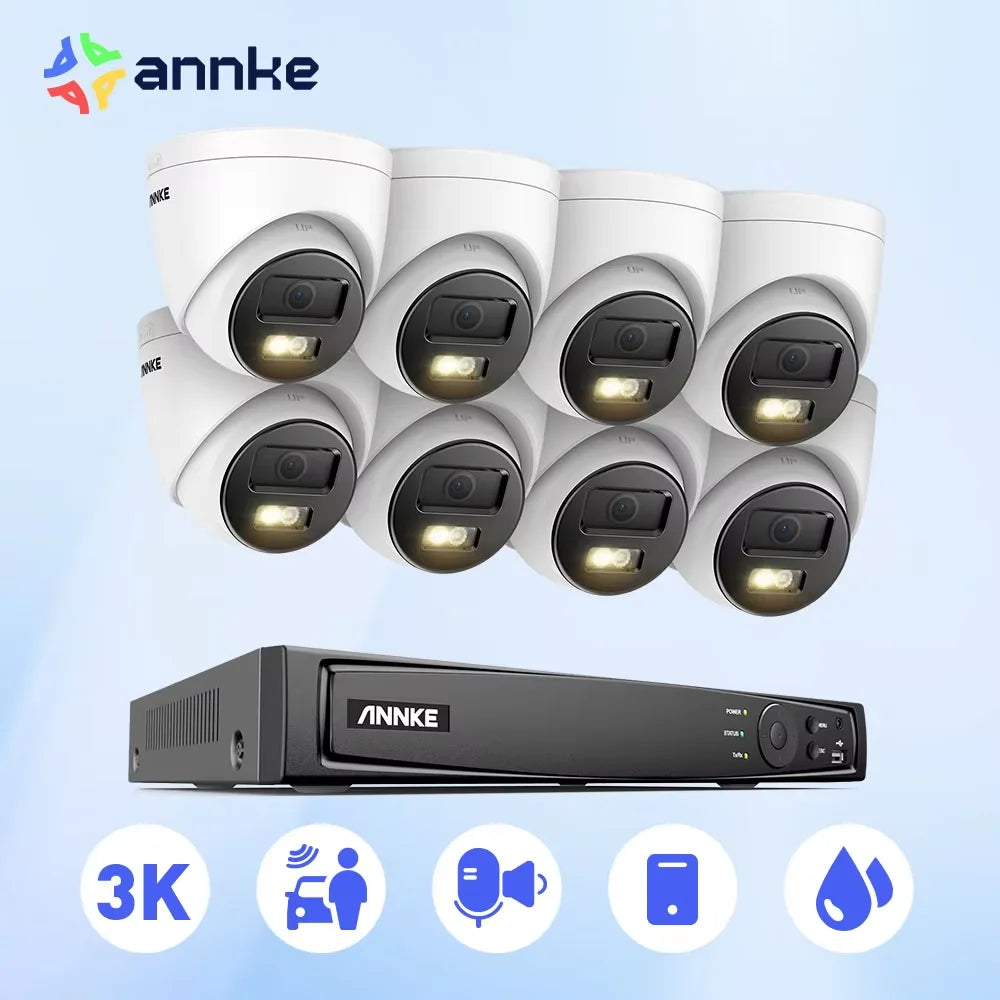

ANNKE 3K Ultra HD PoE CCTV System 8CH NVR Kit
ANNKE 3K Ultra HD PoE CCTV System 8CH NVR Kit
Couldn't load pickup availability
Take control of your security with the ANNKE 3K Ultra HD PoE CCTV System—clear, proactive protection you can monitor from anywhere.
- You get an 8-channel NVR with built-in PoE that delivers real-time 8 MP playback and a 4K HDMI output, optimized by H.265+ to save storage.
- These 3K IR cameras use a 2.8 mm lens for wide coverage, are IP67 weatherproof, and include 3D DNR, 120 dB WDR, plus Smart Dual-Light for sharp day and night images.
- Motion Detection 2.0 includes human and vehicle detection to reduce false alarms and trigger smarter, timely alerts to your phone.

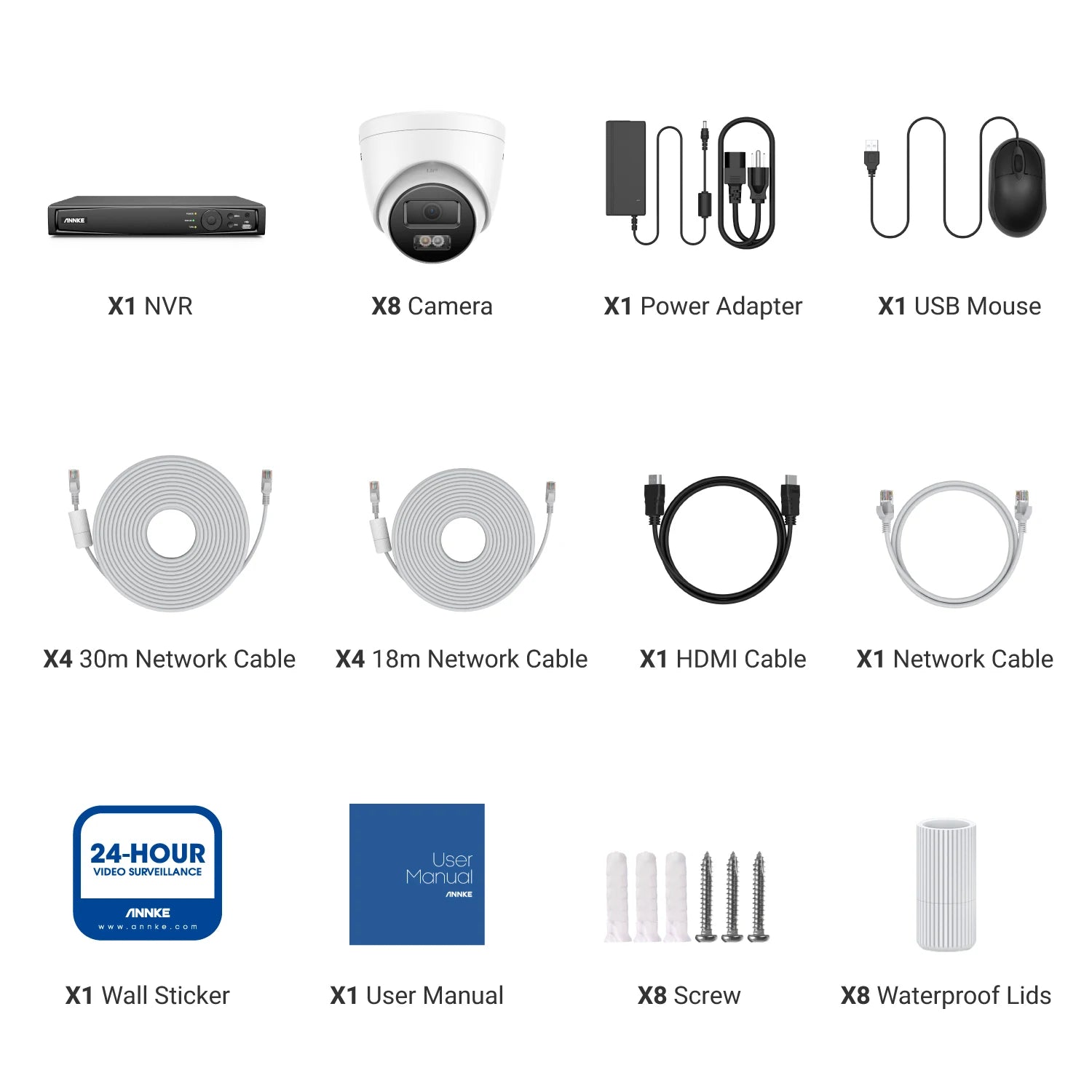

- Remote monitoring is seamless with ANNKE Vision on iPhone, iPad, and Android; it supports on-board storage up to 256 GB, built-in microphone, PoE/DC12V power, and cables up to 30 m or 18 m for flexible installation.
IP Camera | ||
Camera |
Image Sensor |
1/3" Progressive Scan CMOS |
Max resolution |
3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display |
|
Main Stream |
50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720) |
|
Substream |
50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 6 Mbps |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
|
Audio Input |

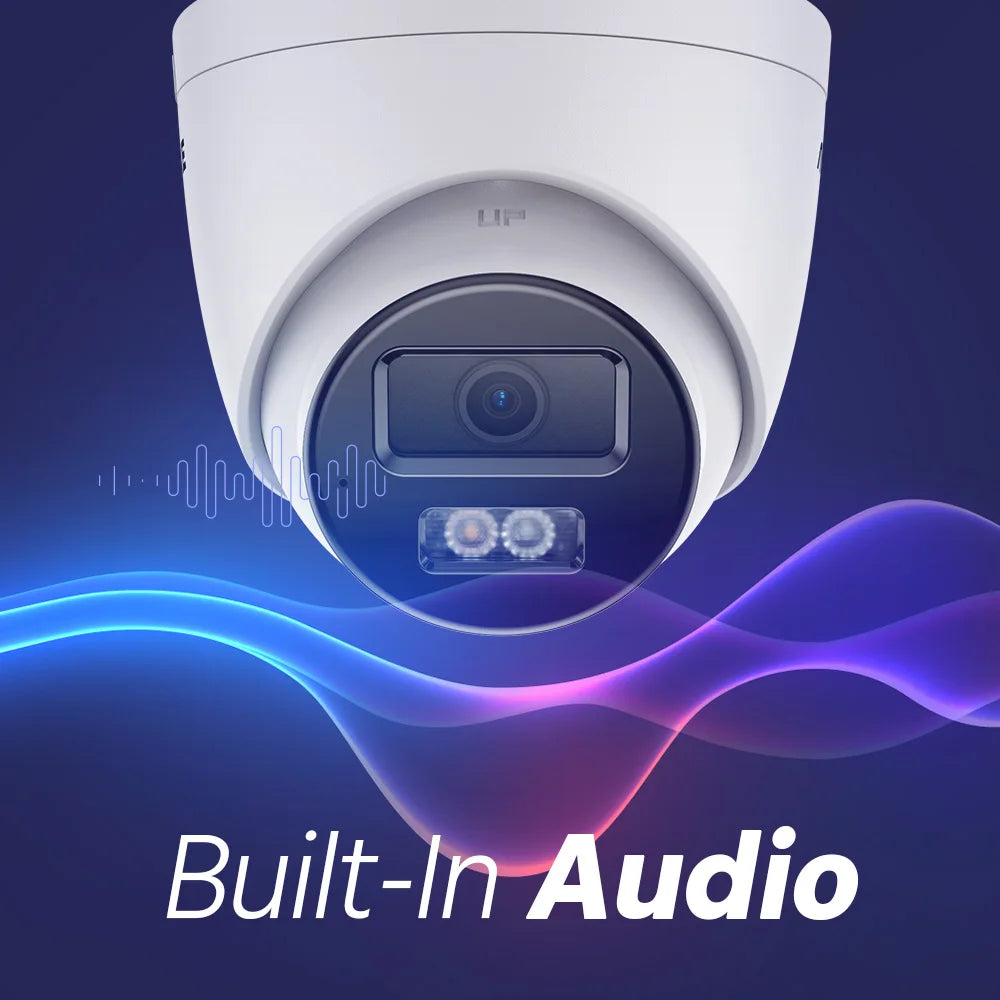

Built-in Microphone, record with audio |
|
Lens |
2.8 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114° |
|
Supplement Light Type |

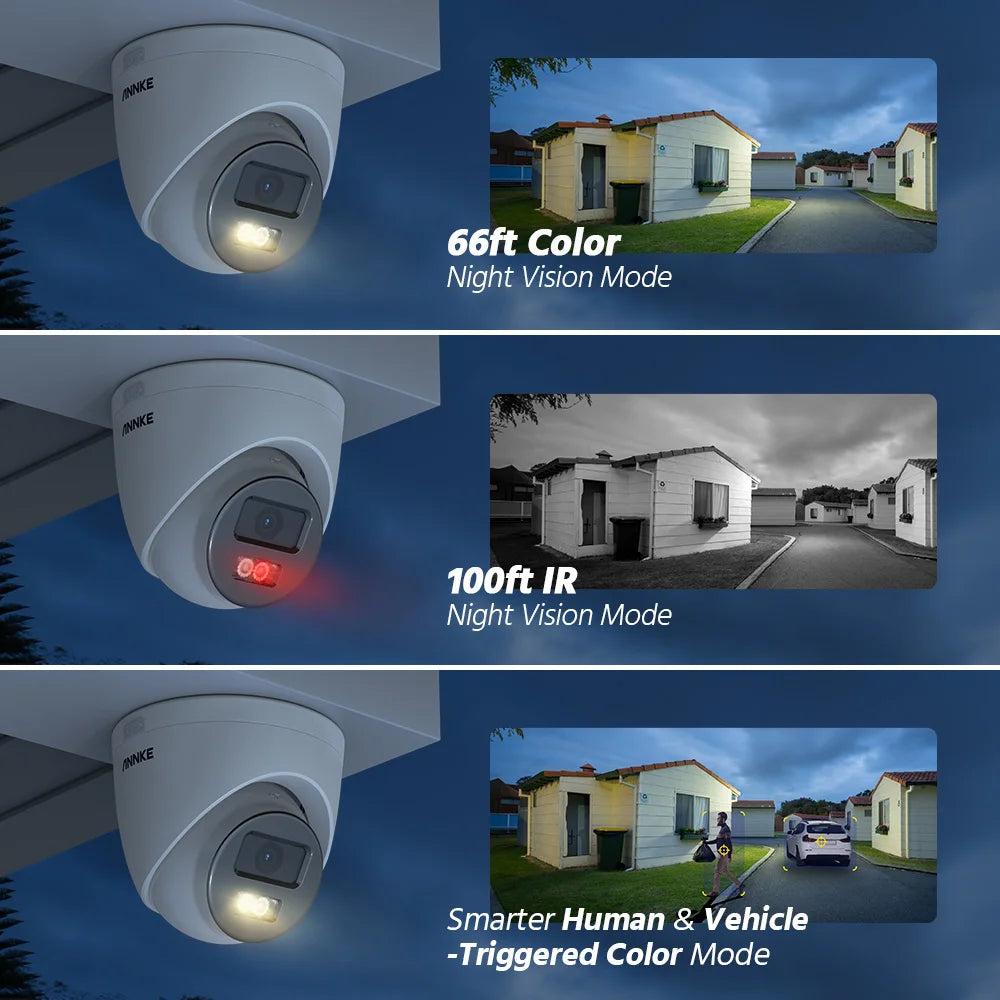

Smart Dual-Light, IR, White Light |
|
Supplement Light Range |
IR: up to 30 m, wite Light: up to 20 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
|
API |
Open Network Video Interface Version 18.12 |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Mirror,rotate,password protection, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White & Black |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 256 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67 |
|
Dimension (L X W X H) |
170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") |
|
Weight |
0.6 lb./270 g |
|
NVR | ||
Video & Audio |
Video Compression |
H.264+/H.264/H.265/H.265+ |
IP Video Input |
8CH PoE |
|
Video Output |
HDMI up to 4K, VGA up to 1080p |
|
Audio Input/Output |
1/1 RCA |
|
Incoming/outgoing Bandwidth |
80/80 M |
|
Max Recording Resolution |
Up to 8MP (3840 X 2160)@30fps(Frame rate depends on IP camera) |
|
Max Playback Resolution |
Up to 8MP (3840 X 2160)@30fps(Frame rate depends on IP camera) |
|
Max Playback Channel |
8CH |
|
Max Playback Capacity |
1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
|

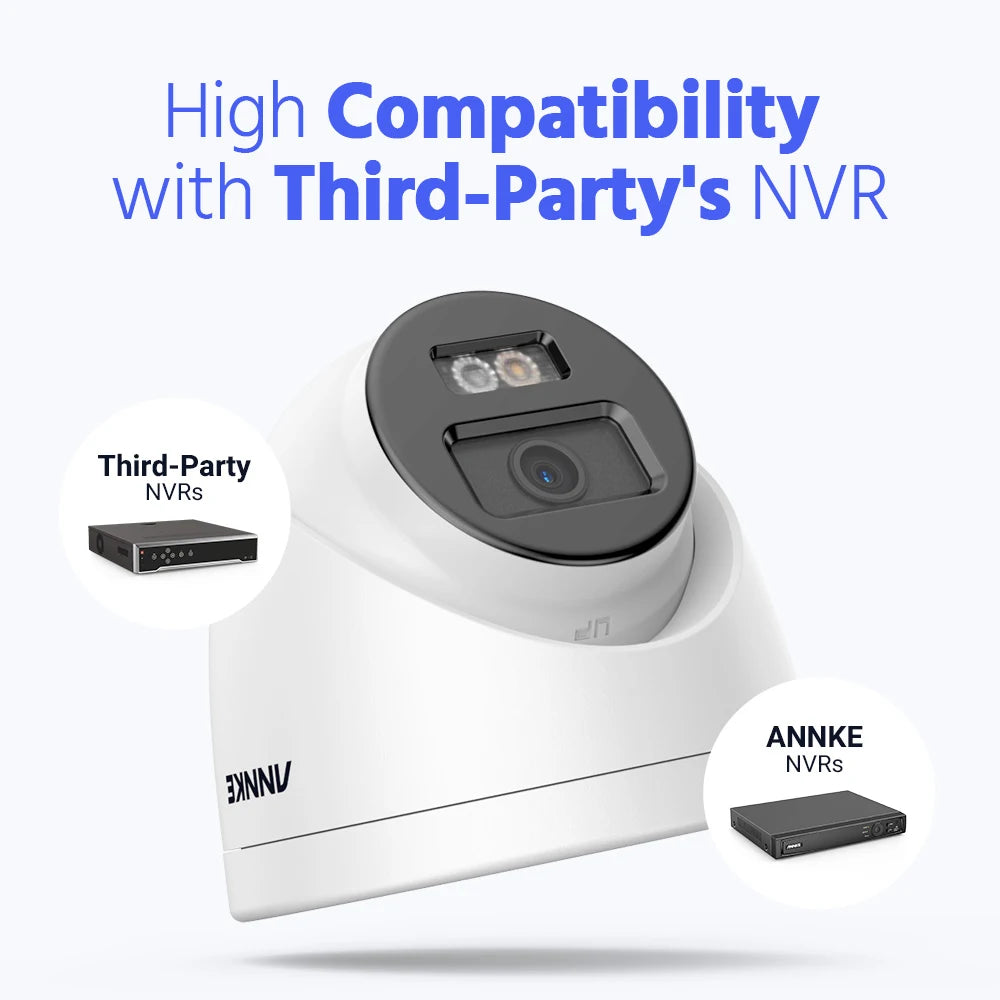

ONVIF Protocols |
Support |
|
Hard Drive |
HDD |
1 SATA Interface |
HDD Capacity |
Up to 8 TB Capacity |
|
External Interface |
Network Interface |
1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
PoE |
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at |
|
USB interface |
USB 2.0*2 |
|
Smart Function |
Deep learning |
Human and vehicle targets detection(Need IP camera support) |
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting |
|
General |
Operating Power |
DC 48 V |
Power Consumption |
≤10 W (Without HDD and PoE) |
|
PoE: Max 25.5 W for Single Port | ||
Working Temperature |
14 °F ~ 131 °F/-10 °C ~+55 °C |
|
Dimensions (W X H X D) |
12.4” X 9.4” X 1.9”/315 X 240 X 48 mm |
|
Weight (Without Hard Disk) |
2.2 lbs/1 kg |
|
