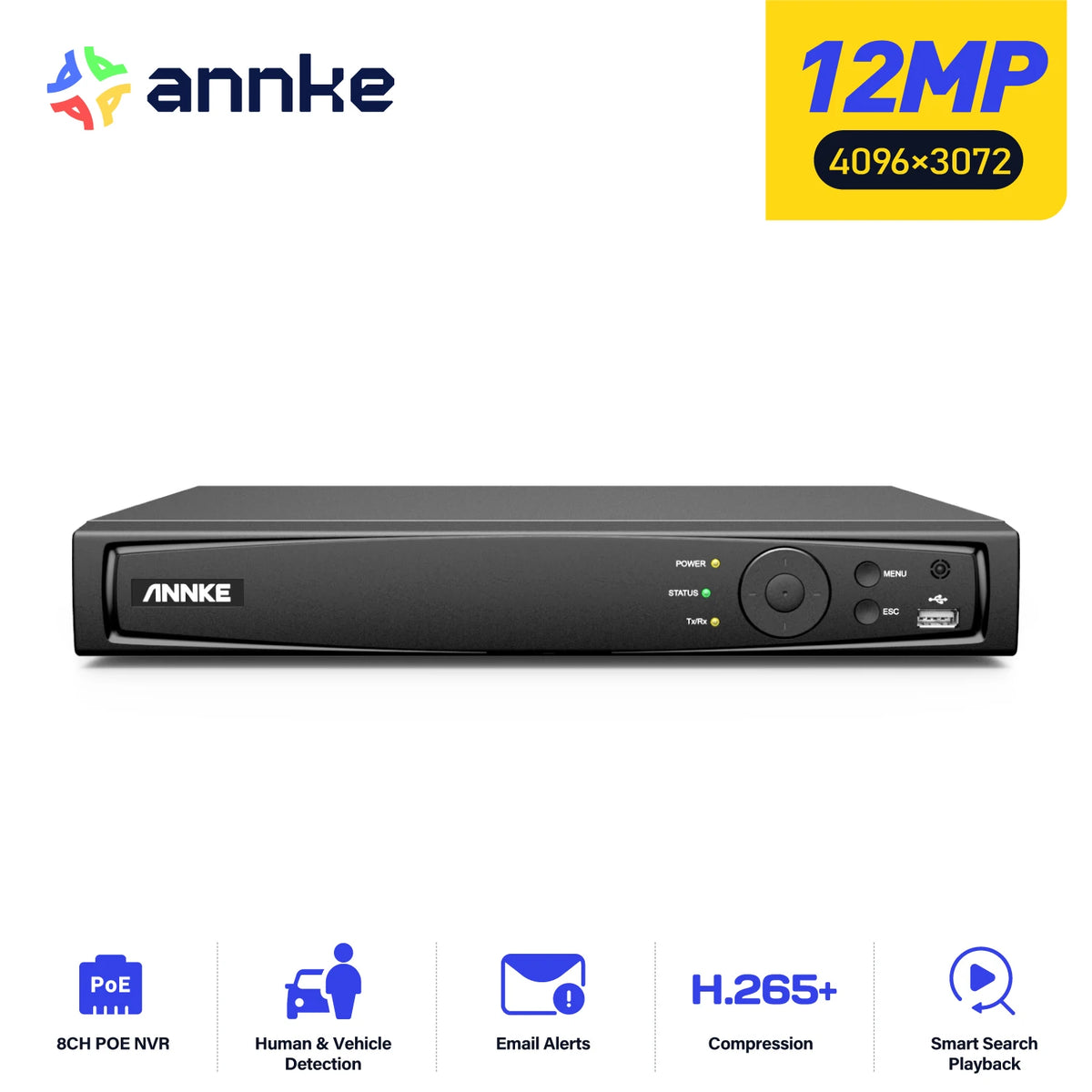

ANNKE 8 Channel PoE NVR Security Video Recorder

$243.99 USD

~~$0.00 USD~~ $243.99 USD

Sale Sold out

Shipping calculated at checkout.

Ships From United States

Build-in HDD 2T None 4T 1T

You can manage up to eight PoE IP cameras with the ANNKE N98PBK 8-channel NVR, recording and playing back video at resolutions up to 12MP.

Simple PoE camera connection: Use eight built-in RJ45 PoE ports with IEEE 802.3af/at support to connect compatible IP cameras through one recorder.
High-resolution viewing: Record and play back up to 12MP at 30fps, with HDMI output up to 4K (4096 × 2160) and VGA output up to 1080p.
Efficient storage and access: H.265+/H.265/H.264+/H.264 decoding helps manage video files, while one SATA interface supports a hard drive up to 8TB. You get two USB 2.0 ports for external devices.
Remote and smart monitoring: View your cameras through ANNKE Vision on iPhone, iPad, or Android devices. Human and vehicle detection supports up to eight channels with compatible cameras, plus line-crossing, intrusion, and region-based alerts.

NVR
Video & Audio	Decoding Format	H.264+/H.264/H.265/H.265+
	IP Video Input	8CH PoE
	Video Output	HDMI up to 4K (4096 × 2160), VGA up to 1080p(1920 × 1080)
	Audio Input/Output	1/1 RCA
	Incoming/outgoing Bandwidth	80/80 Mbps
	Max Recording Resolution	Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)
	Max Playback Resolution	Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)
	Max Playback Channel	8CH
	Max Playback Capacity	1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)

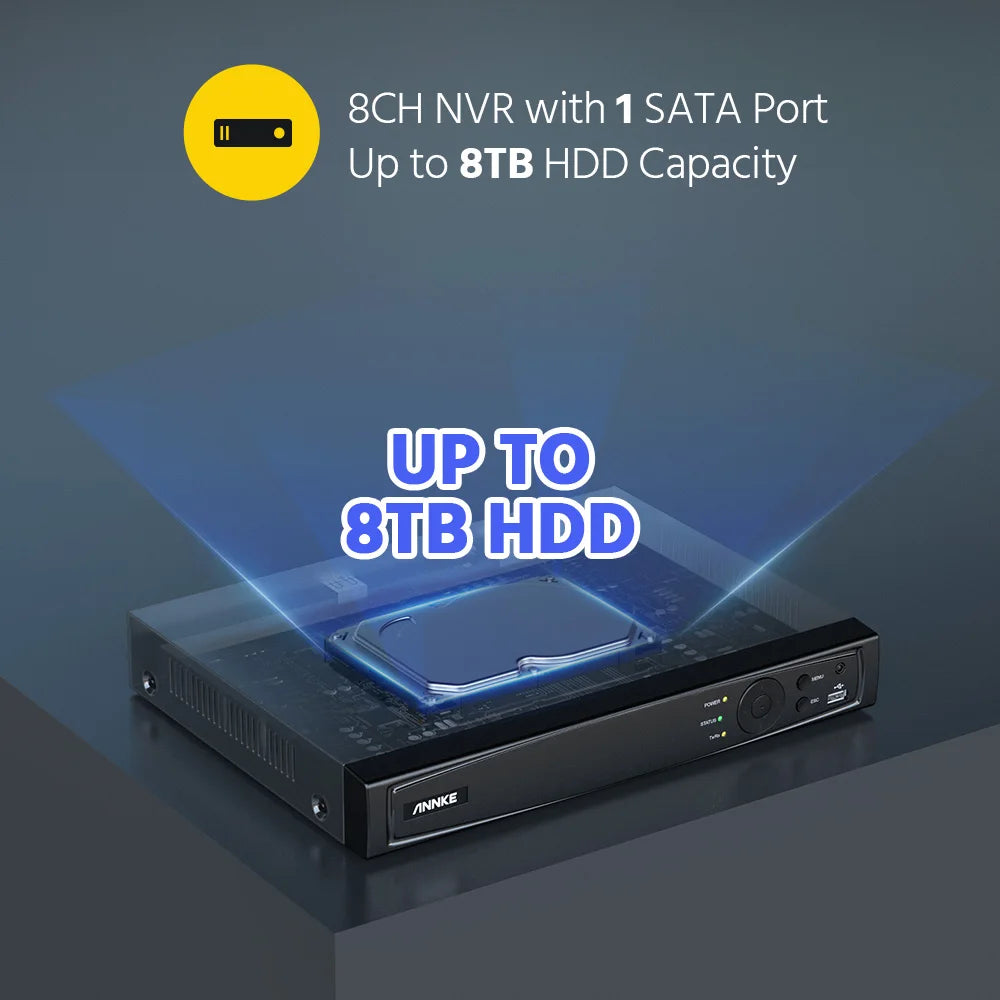

Hard Drive	HDD	1 SATA Interface
Hard Drive	HDD Capacity	Up to 8 TB Capacity
External Interface	Network Interface	1, RJ-45 10/100Mbps self-adaptive Ethernet interface
	PoE	8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at
	USB interface	USB 2.0*2
Smart Function	Deep learning	8-ch Human and vehicle targets detection(Need IP camera support)
	Deep learning	4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP)
	Smart Event	Line crossing detection, intrusion detection, region entrance detection, region exiting detection(Need IP camera support)
General	Operating Power	DC 48 V
	Power Consumption	≤10 W (Without HDD and PoE)
	Power Consumption	PoE: Max 25.5 W for Single Port
	Working Temperature	14 °F ~ 131 °F/-10 °C ~+55 °C
	Dimensions (W X H X D)	12.4” X 9.4” X 1.9”/315 X 240 X 48 mm
	Weight (Without Hard Disk)	2.2 lbs/1 kg
