ANNKE C800 4K PoE Outdoor Security Camera
ANNKE C800 4K PoE Outdoor Security Camera
Couldn't load pickup availability

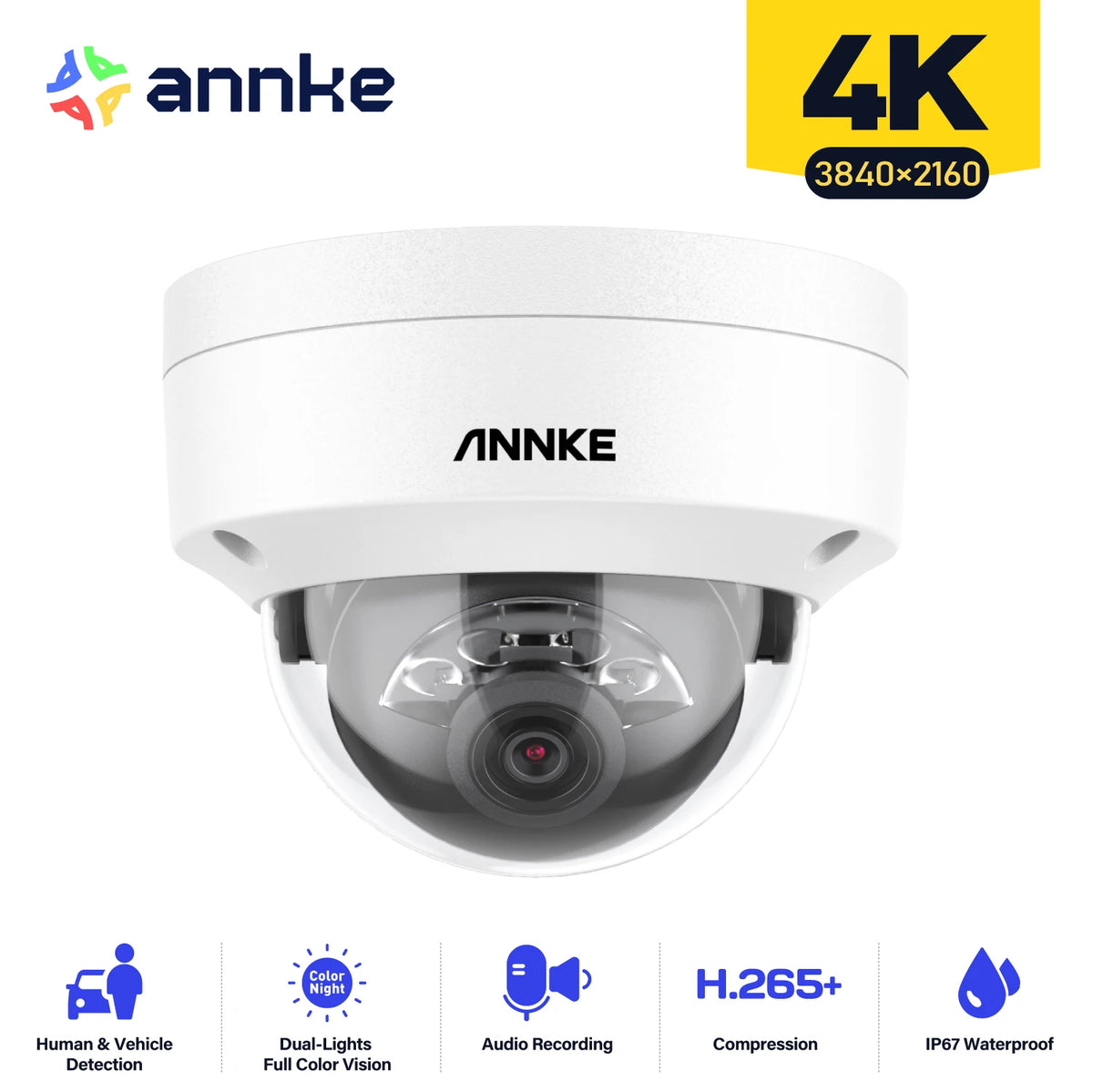

You get sharp 4K outdoor surveillance with intelligent human and vehicle detection, smart dual-light night vision, and one-cable PoE connectivity in the ANNKE C800 dome camera.
- 4K detail: The 1/2.4-inch Sony progressive-scan CMOS sensor delivers 3840 × 2160 resolution at up to 15 fps, while the 4mm F1.6 lens provides a 78° horizontal field of view.
- Day-and-night coverage: Smart dual-light illumination combines infrared and white light up to 30m (100ft), with 120dB WDR, 3D DNR, BLC, and HLC for clearer challenging scenes.
- Smarter alerts: Motion Detection 2.0 identifies people and vehicles. A built-in microphone records real-time audio, while the camera has no audio output.

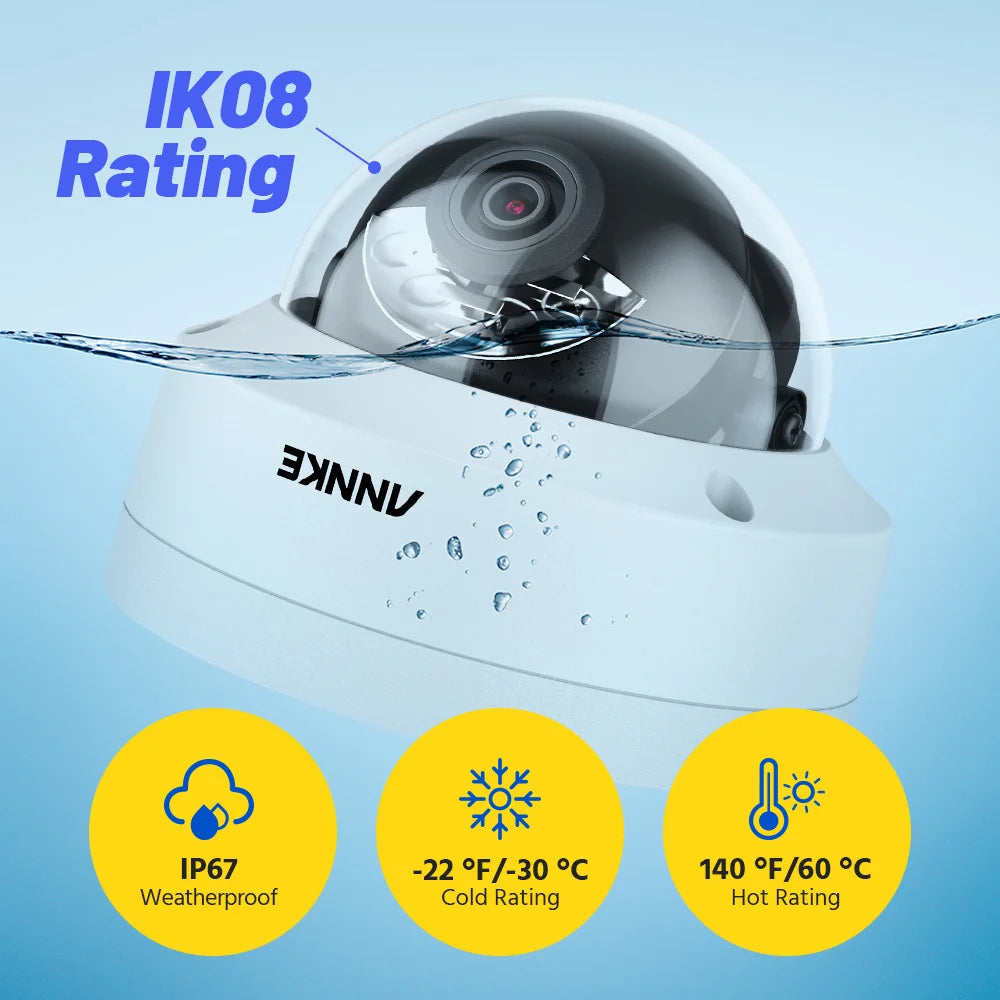

- Outdoor-ready installation: Use PoE (802.3af) or DC12V power through the RJ45 network interface. The metal-and-plastic, vandal-resistant housing carries IP67 and IK08 protection, supports microSD cards up to 512GB, and operates from -30°C to 60°C.
IP Camera | ||
Camera |
Image Sensor |
1/2.4" Progressive Scan CMOS |
Max resolution |
3840*2160(8MP) |
|
Main Stream |
50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Substream |
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 16 Mbps |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
|
Audio Input |
Built-in Microphone, record with audio |
|
Lens |
4 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
Supplement Light Range |
Up to 30 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
|
API |
Open Network Video Interface Version (Profile S, Profile T, Profile G) |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate mode, mirror, password protection, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67 & IK08 |
|
Dimension (L X W X H) |
Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84") |
|
Weight |
1.2 lb./550 g |
|
