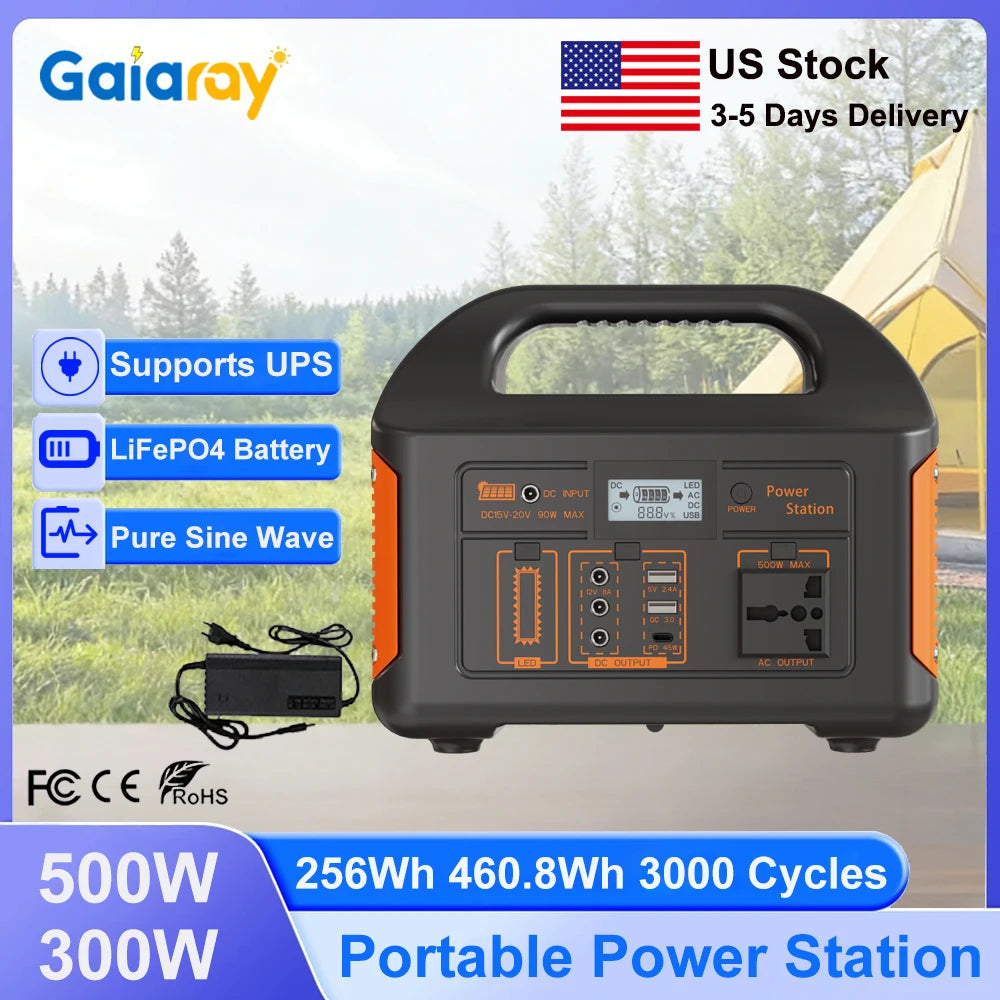

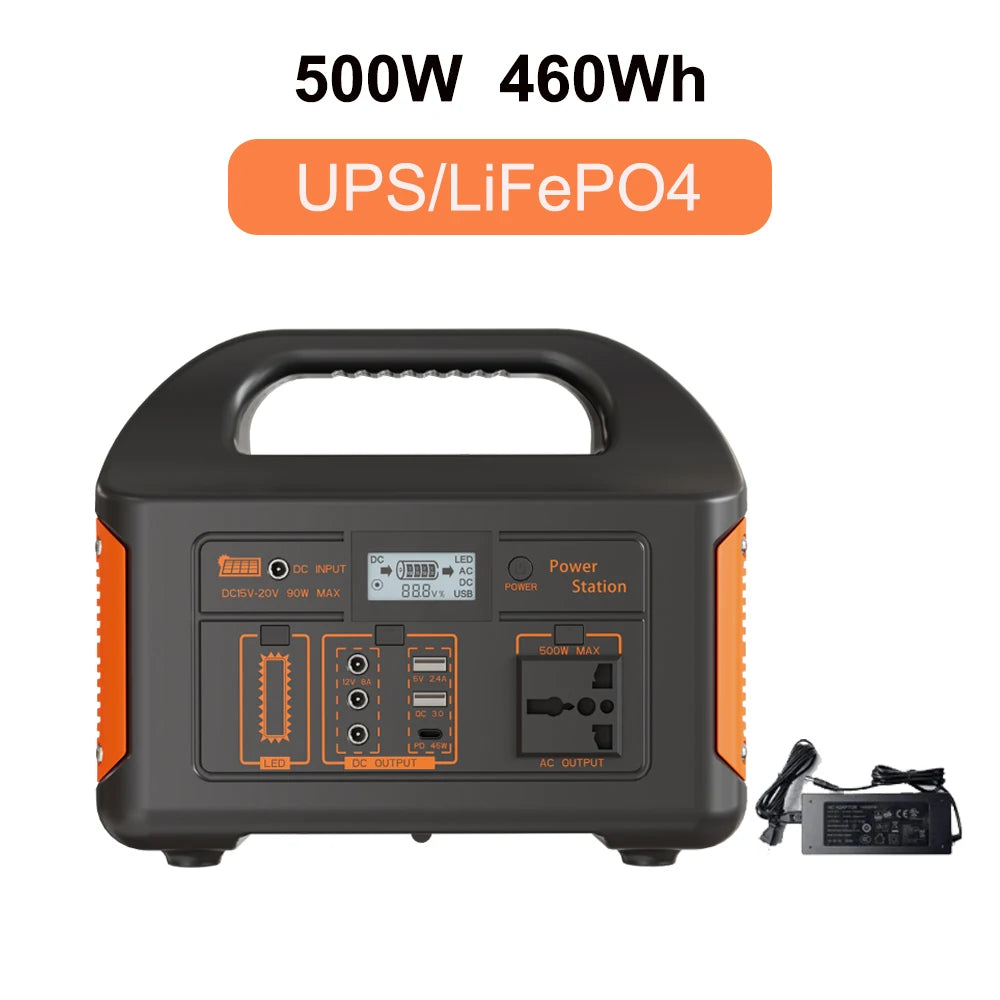

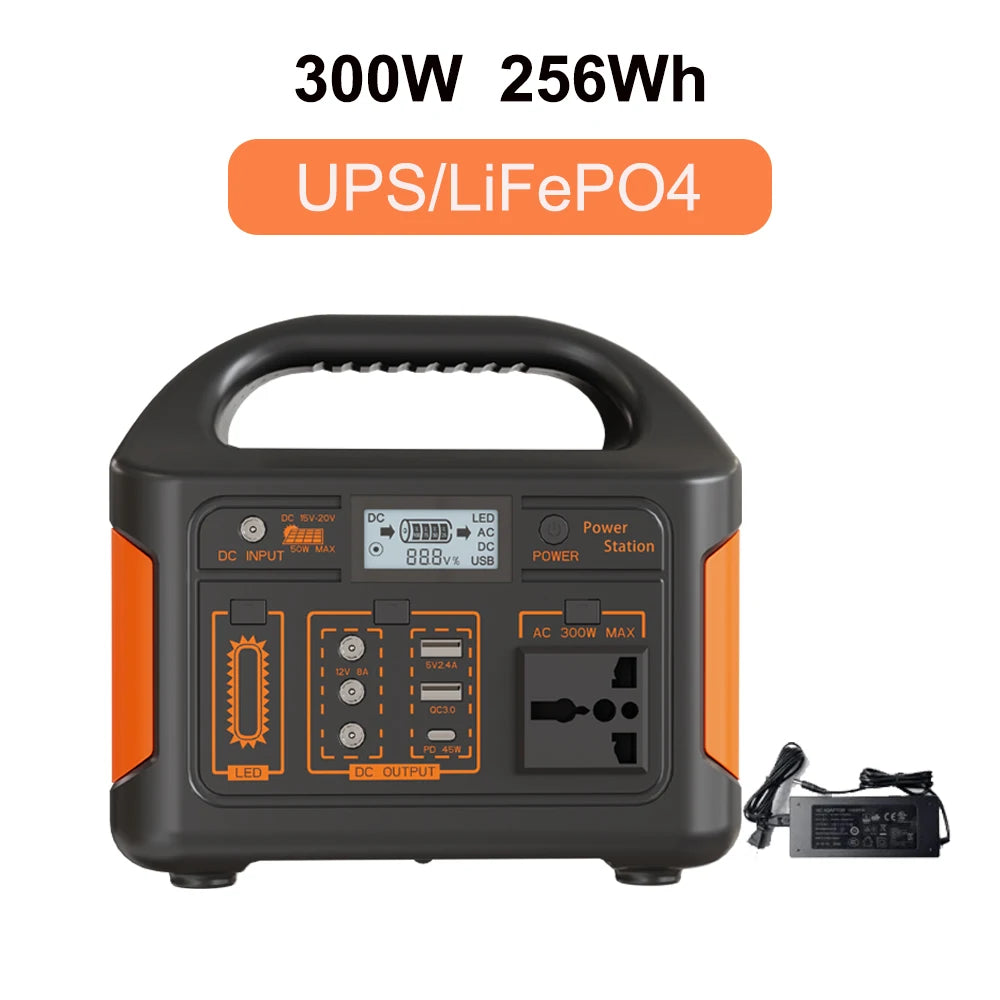

Gaiaray 460.8Wh Portable Power Station Solar Generator 110V
Gaiaray 460.8Wh Portable Power Station Solar Generator 110V
Couldn't load pickup availability
Power your adventures and emergencies with the GaiaRay 460.8Wh portable power station—a reliable solar generator built for off-grid trips and home backup.
- LiFePO4 battery chemistry delivers safety and long life for you, with 256Wh or 460.8Wh nominal capacity and thousands of charging cycles.
- 110V pure sine wave AC output (60Hz ±2Hz) with a universal socket, so your laptops, TVs, and small appliances run smoothly.
- Versatile port array: PD45W USB-C, DC12V8A, and 3× DC5521 outputs, plus a universal AC outlet to power your gear.
- Compact, portable design with an LCD display to monitor your input/output and battery status; solar-ready for your green power storage and built-in safety certifications for peace of mind.
Rated Power |
300W |
500W |
Output Waveform |
Pure Sine Wave |
Pure Sine Wave |
AC Output Voltage |
110V±15% |
|
AC Output Frequency |
60Hz ±2Hz |
|
Conversion Efficiency |
Maximum Value>90% |
|
Charging Interface |
External Charger Port and Solar Panel Charging Port DC5521*1 (Built in solar intelligent controller) |
|
AC Output Socket |
Universal Socket |
|
DC Output Voltage |
USB 5V 2.4A；QC3.0；PD45W；DC12V8A，3*DC5521 Port |
USB 5V 2.4A；QC3.0；PD45W；DC12V8A，3*DC5521 Port |

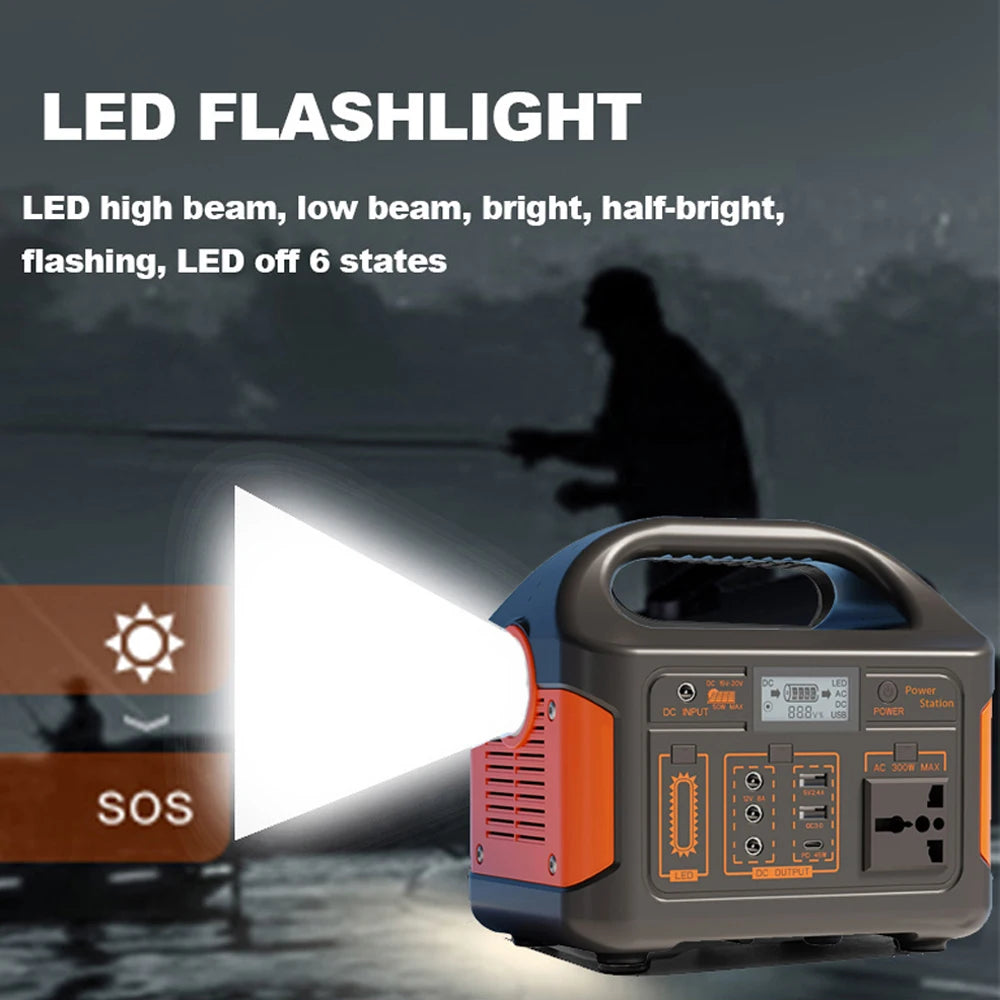

LED Light States |
LED high beam, low beam, high brightness, half light, flashing, LED light off 6 states |
|
Battery Type |
LiFePO4 |
|
Battery Capacity |
12.8V 256WHh |
12.8V 460W |
Solar Panel Specifications |
15V-20V Maximum 50W (Optional) |
15V-20V Maximum 90W (Optional) |
Charging Current |
Maximum Value 2.5A |
Maximum Value 6A |
AC Charger Specifications |
14.6V 2A |
16V 5A |
AC Charger Charging Time |
After full discharge, battery capacity reaches 80% after 5 hours of charging |
|

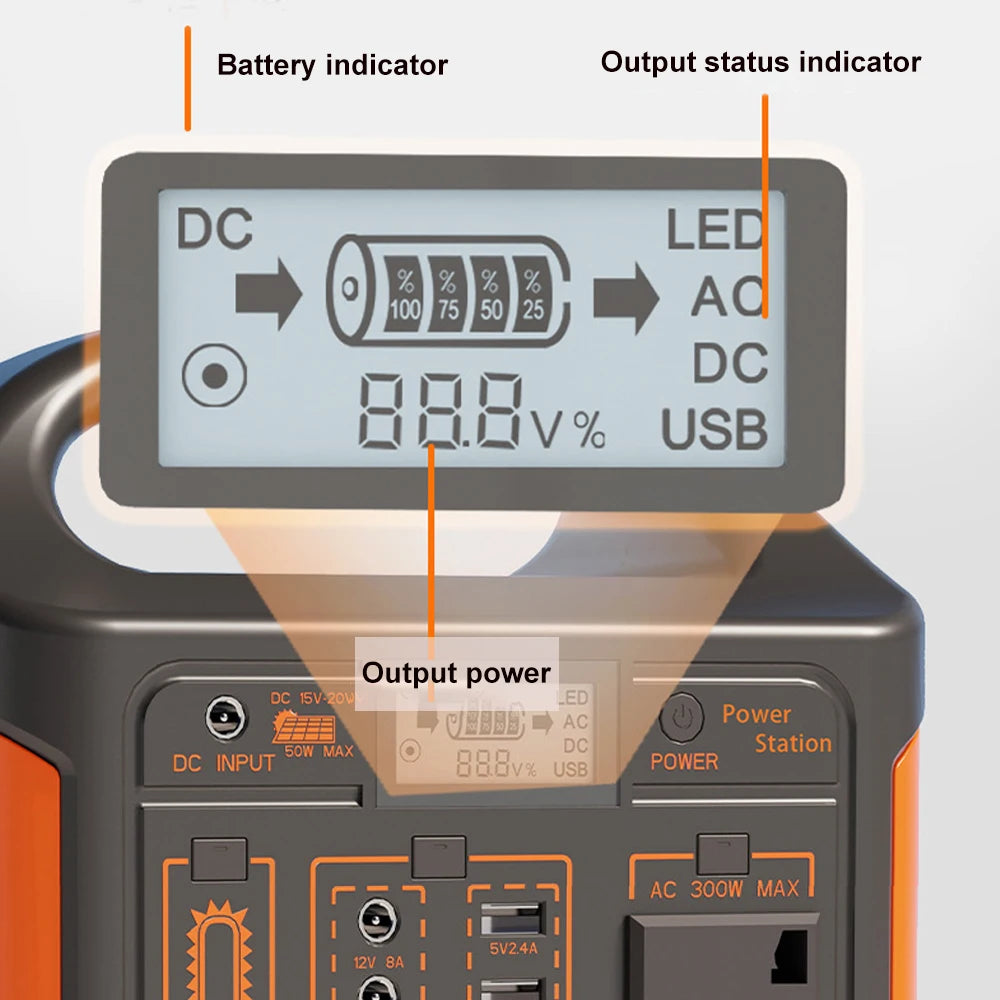

LCD Display |
Battery capacity, battery voltage, charging status, discharge status |
|
Heat Dissipation |
Automatic cooling |
|

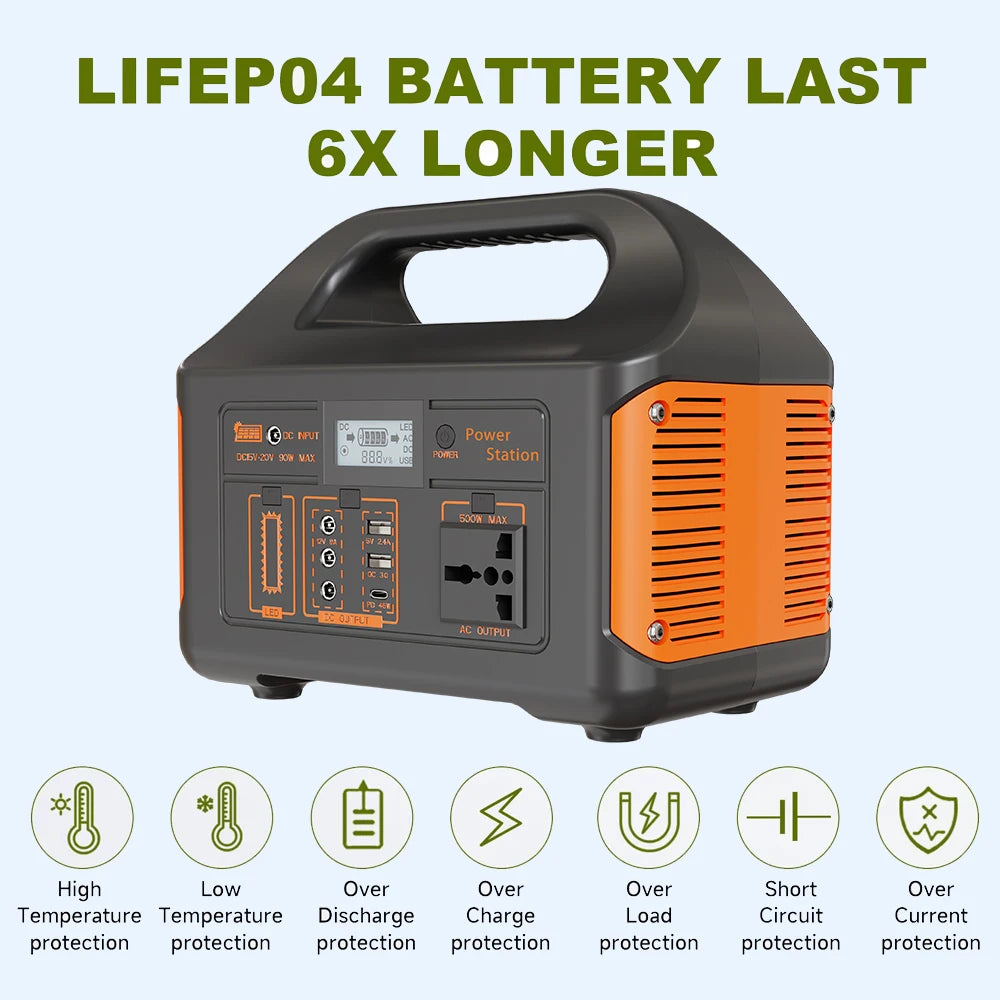

Protective Function |
Low voltage, over voltage, overload, over temperature, over current short circuit |
|
Operating Environment Temperature |
-10～40℃ |
|
Operating Environment Humidity |
10～85% |
|
Storage Environment Humidity |
5～90% |
|
Net Weight(kg) |
≈2.9kg |
≈5.36 |
Product Size D*W*H(mm) |
211*160*196 |
271*172*228 |
